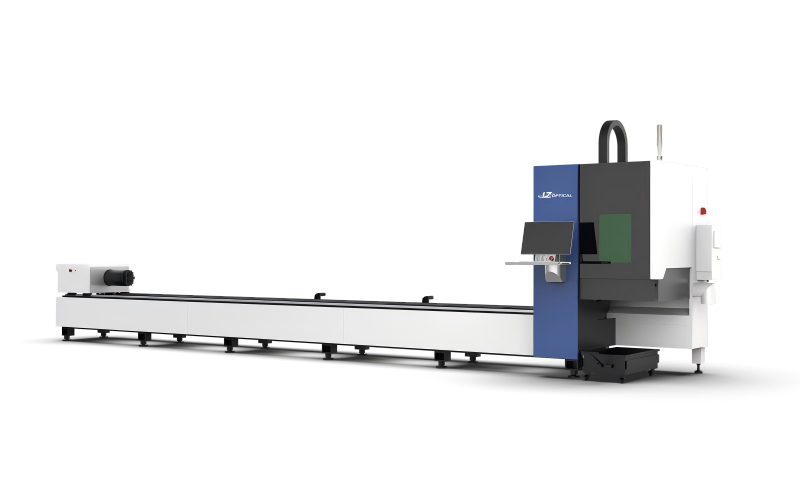

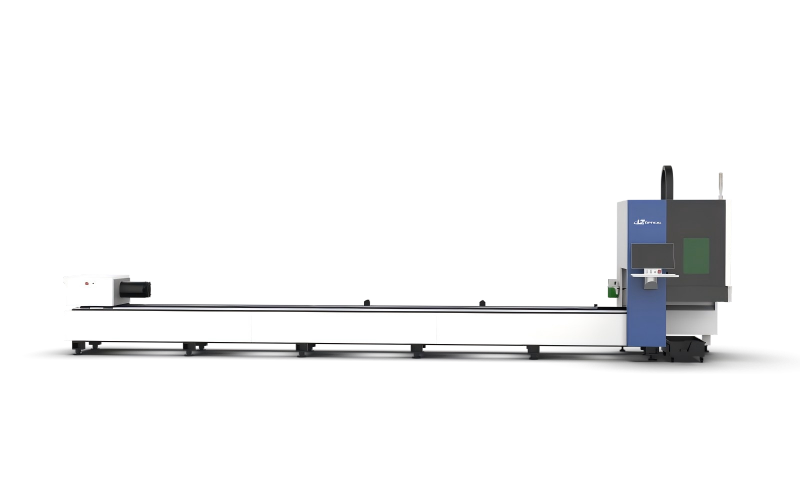

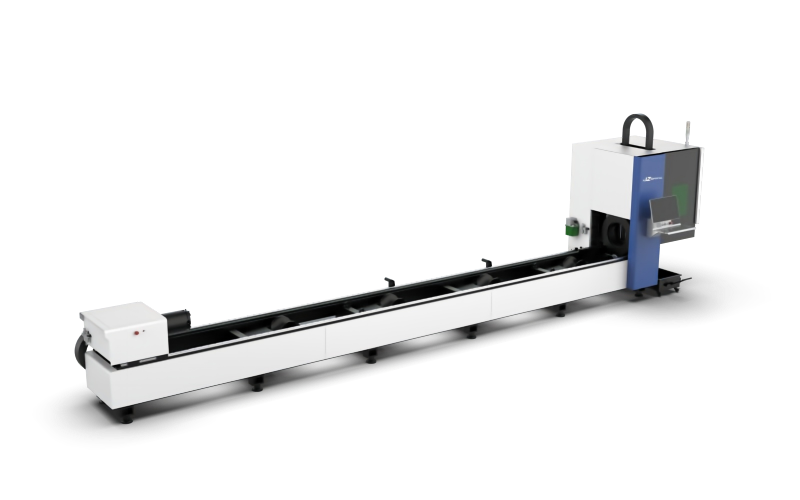

Model T6012 T6020 T6035
LaserPower 1.5-3kW 1.5-6kW 3-12kW
Max.raw Material Length 6300mm 6300mm 6300mm
Round Tube Diameter ¢10-¢120mm ¢15-¢230mm ¢25-¢350mm
Square Tube Side Length ¨10*10-¨120*120mm ¨15*15-¨230*230mm ¨25*25-¨350*350mm Max. Acceleration 1.5G 1.5G 0.8G
|
| |

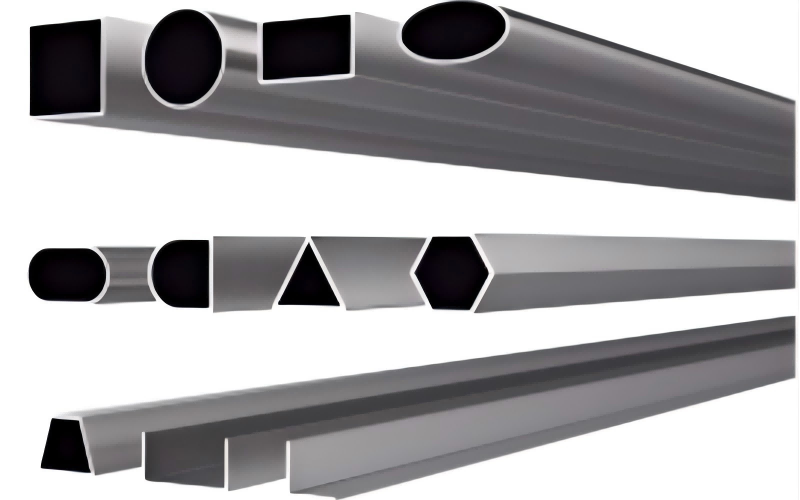

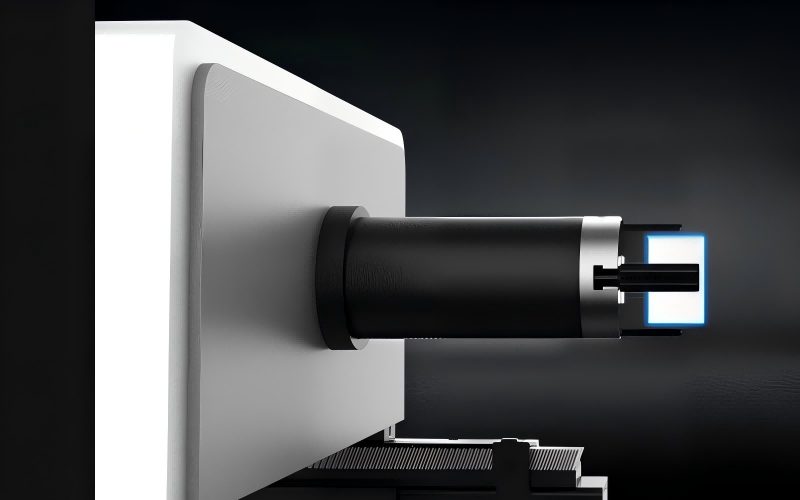

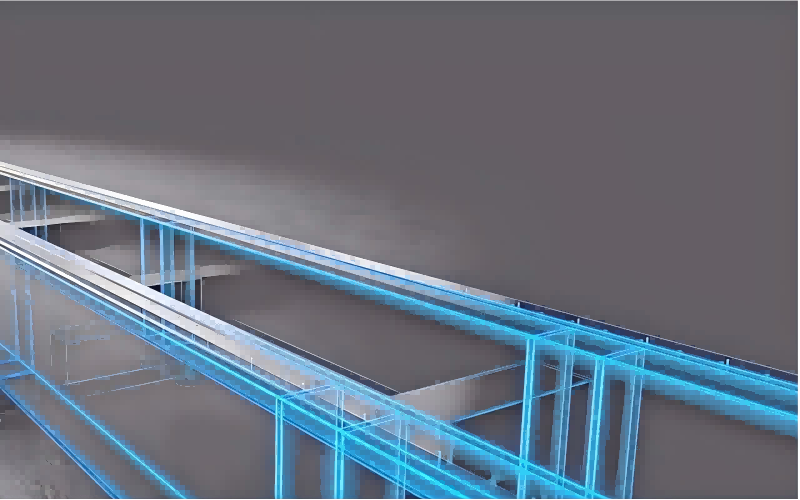

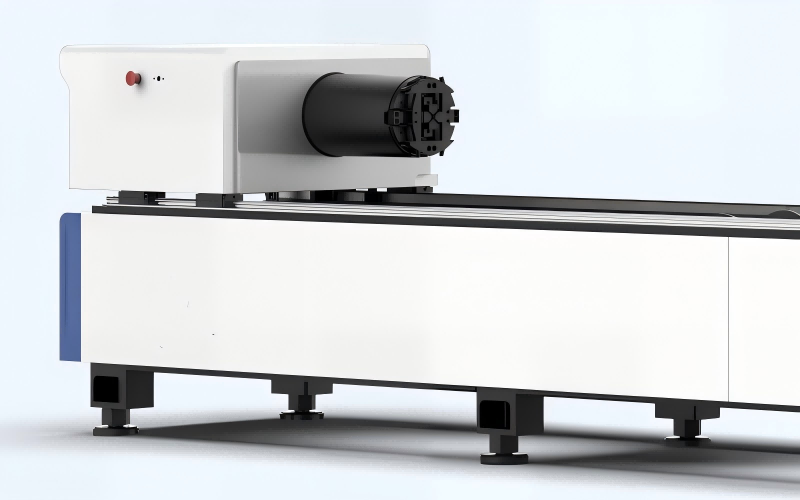

| All Profiles, Perfectly Cut | Powerful Chuck, Superior Cutting | New Dual-Beam Bed Structure |
Suitable for a wide range of cutting applications, enabling straight cuts and complex profile cutting on various types of metal tubes. | The pneumatic direct-drive chuck ensures automatic centering, reliable clamping, efficient power transmission, and quick maintenance | Horizontal bed with dual-beam reiforced structure delivers high rigidity, excellent load capacity, and stable high-speed cutting performance |
|
|
|

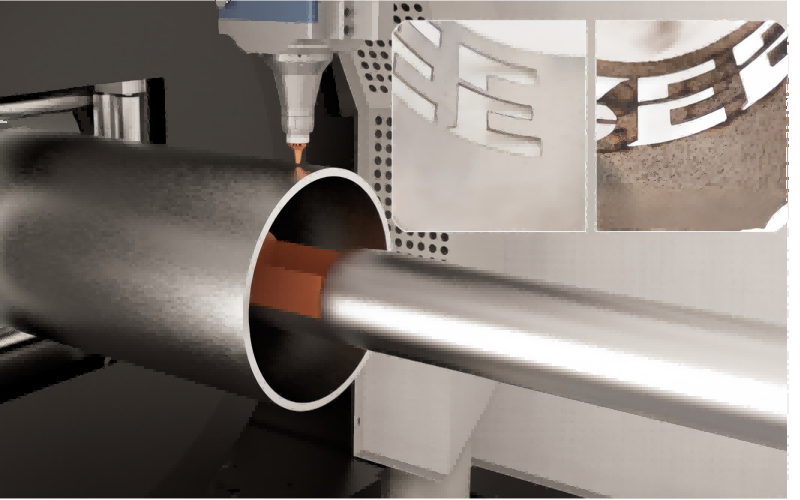

| Minimal Remnants, Maximum Savings | Optional Tube Inner Wall Protection | Optional Tube Weld Seam Detection |
Improved cutting efficiency while maximizing material utilization, reducing waste and lowering overall production costs. | Optional inner wall protection device provides smooth, slag-free tube cutting, reducing rework processes and saving labor costs. | The camera imaging system captures and analyzes uploaded images to automatically detect weld seam positions, ensuring better appearance and allowing the cutting seam to be placed exactly where required. |

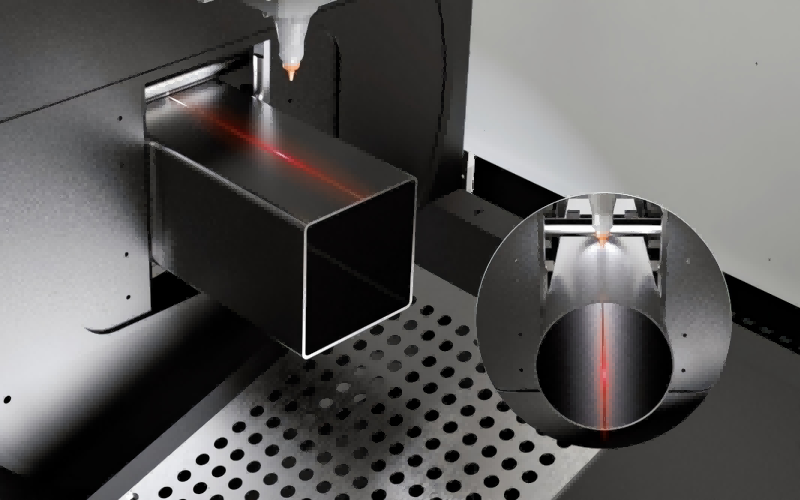

Unloading Rack Weld seam identification
Display & Exhibition Equipment | Medical Equipment | Fitness Equipment | Metal Furniture |
Office Furniture | Automotive Components | Architectural Metal Products | Custom Tube Fabrication
