Light Source RGB Laser Laser Power 5W
Beam Divergence 1.3–2.6 mrad Beam Diameter 3–8 mm
Wavelength Red 638±5nm / Green 525±5nm / Blue 455±5nm
| Laser Power | 5W | Power Consumption | ≤250W |
| Channel Modes | 16-channel / 39-channel | Laser Controller | Pangolin-FB4 |
| Housing Material | Aluminum Alloy | Control Modes | DMX512, ArtNet, Network Control |
| Housing Color | Gray | Operating Mode | Continuous Wave (CW) |
| Surface Finish | Sandblasted Anodized | Input Voltage | AC 220V ±5%, 50–60Hz |
| Scanner Speed | 40Kpps | Cooling Method | Air Cooling |
| Scanner Angle (X-axis) | ±30° | Operating Temperature | -40°C to +60°C |
| Scanner Angle (Y-axis) | ±30° | Operating Humidity | 20–90% RH |
| Service Life | 15,000 Hours | Protection Rating | IP65 |
| Installation | Hanging Mount / Floor Mount | Net Weight | 10 kg |

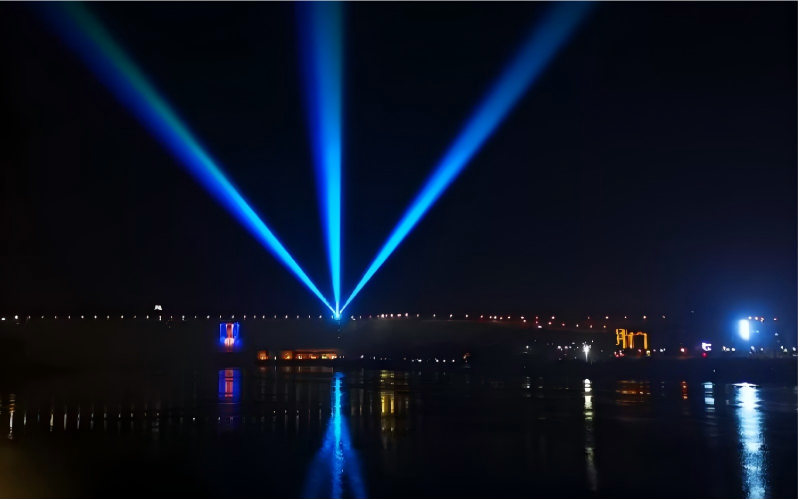

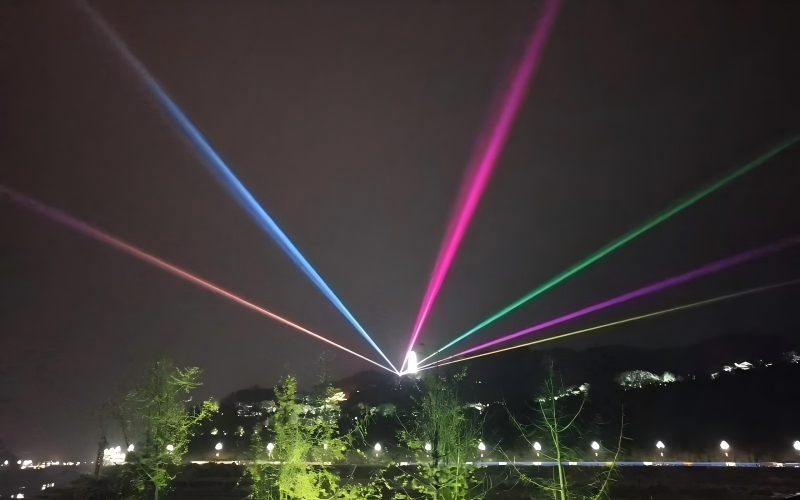

| Applications | Architectural Lighting, Landmark Projection, Fountain Shows, Stage Lighting, Creative Advertising, Outdoor Laser Displays | ||
1. Outstanding Thermal Stability
Advanced thermal management technology keeps the laser chip temperature precisely controlled at 25°C ±0.5°C, ensuring
consistent laseroutput, stable performance, and extended service life regardless of ambient temperature changes.
2. High-Brightness RGB Laser Output
Manufactured using advanced automated production technology, the RGB laser delivers excellent beam consistency, low beam divergence,
and high brightness, producing vivid colors and long-distance projection for professional laser shows and outdoor applications.
3. High-Speed Precision Scanning
Equipped with a high-precision galvanometer scanner featuring optimized mechanical design, low static friction, and minimal zero-position
drift. The system provides fast scanning speeds, outstanding dynamic response, and smooth projection of complex graphics, animations, and
text with exceptional clarity and detail.
4. Excellent Electromagnetic Compatibility
The entire laser system is optimized for electromagnetic compatibility (EMC), delivering a high signal-to-noise ratio, strong anti-interference
capability, and reliable performance in demanding indoor and outdoor environments.
