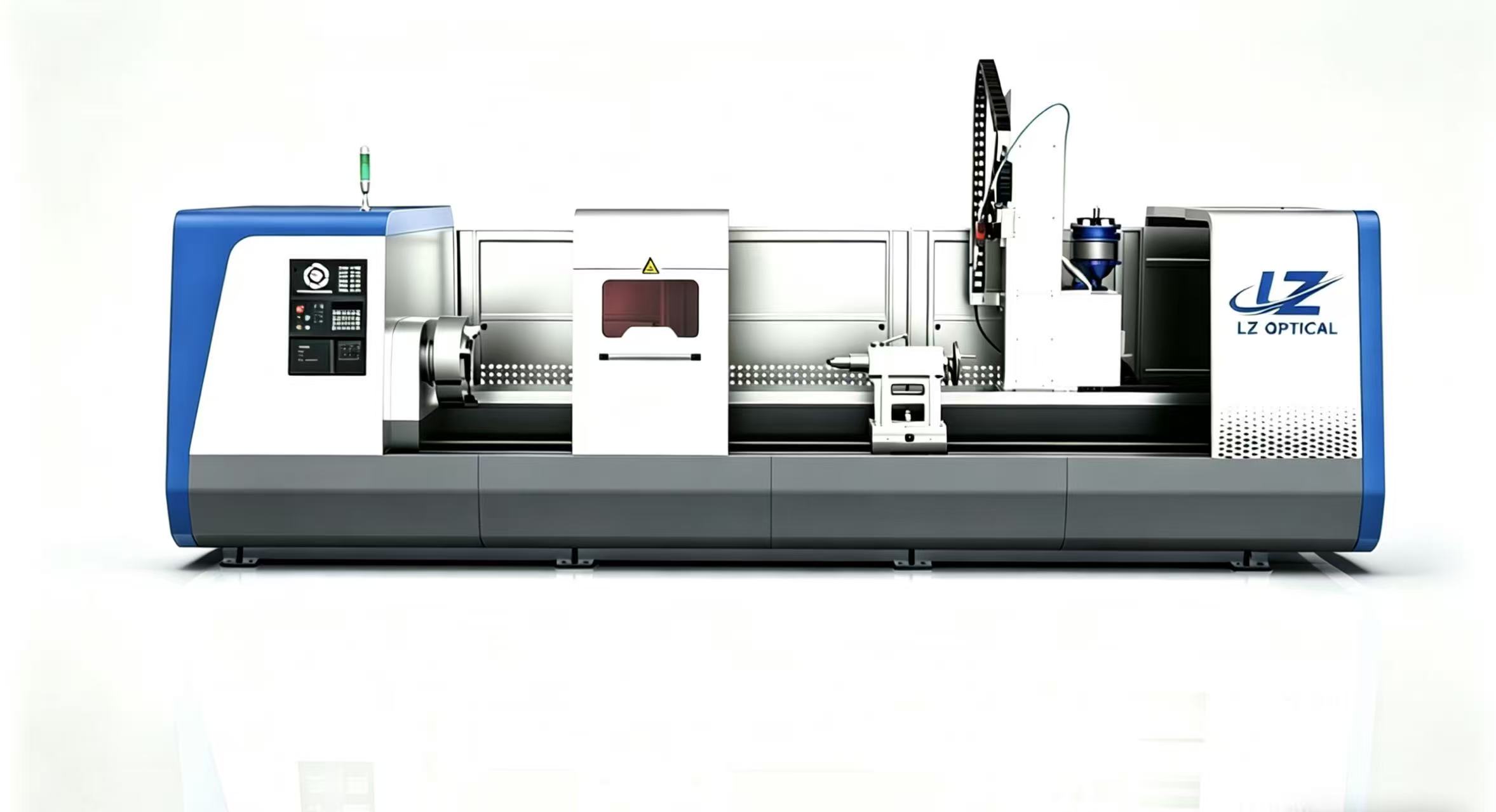

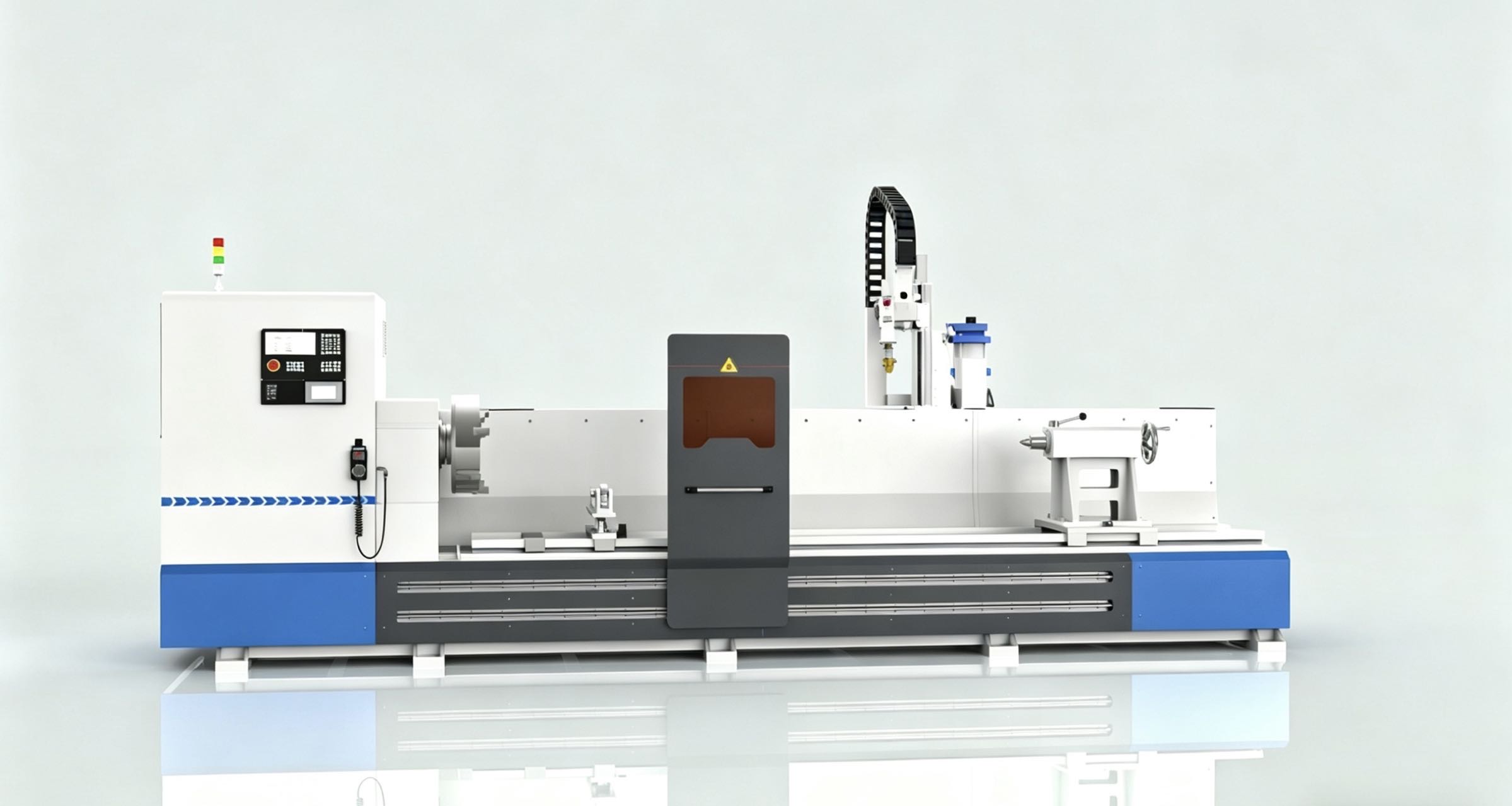

The outer surface circular spot laser cladding equipment is engineered for high-precision cladding on external cylindrical surfaces. It is particularly suitable for applications requiring thin coating layers and minimal deformation, delivering excellent surface quality and dimensional stability.
Featuring high-precision coaxial annular powder feeding technology, the system ensures uniform powder distribution and consistent cladding quality. The resulting cladding layer is smooth and flat, with a machining allowance of ≤0.25 mm, significantly reducing post-processing time and cost. With a high powder utilization rate exceeding 90%, the equipment maximizes material efficiency while maintaining superior performance.

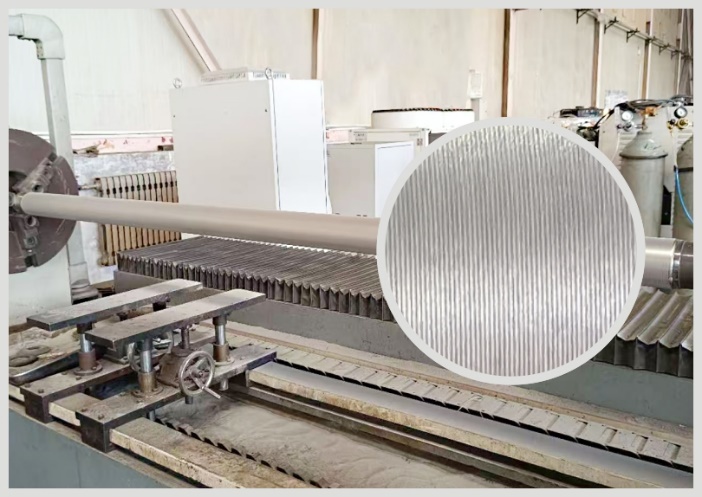

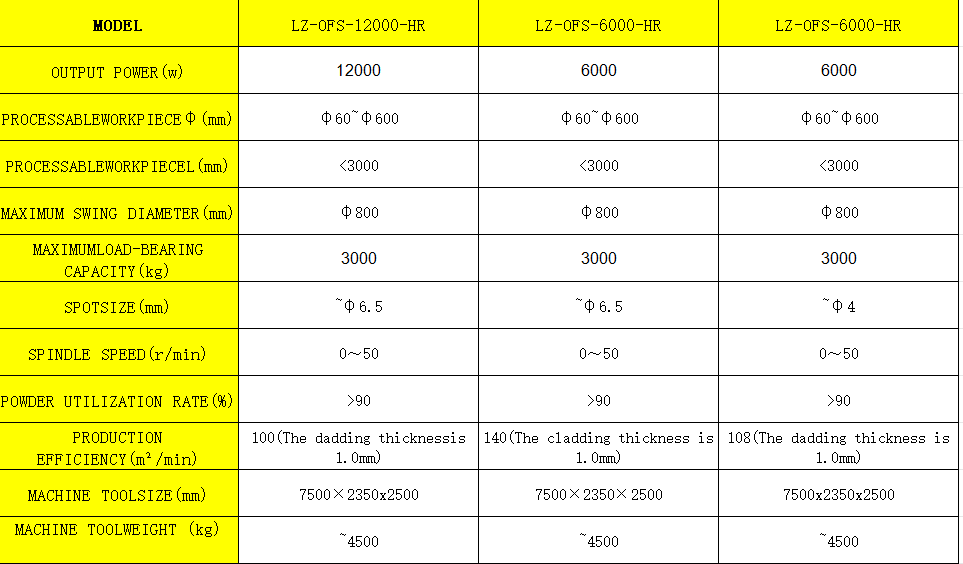

Equipped with a 6000W laser and a ~4 mm spot diameter, the system effectively addresses deformation challenges in slender rod workpieces. For example, a rod with a diameter of 95 mm and a length of 1700 mm can be processed with deformation controlled to less than 0.15 mm, ensuring high precision and reliability.

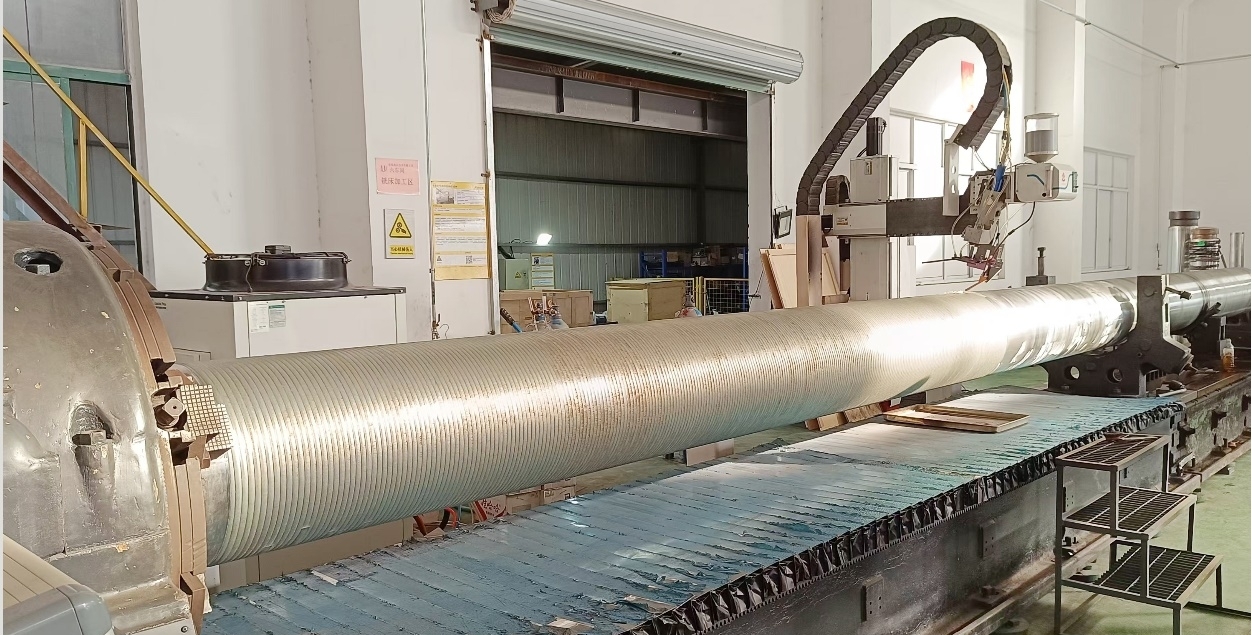

This equipment is ideal for workpieces requiring thin outer surface cladding and low deformation. It is widely used for surface strengthening and repair of components such as oil cylinders, rolls, and shafts.
Key Advantages:
High-precision coaxial powder feeding for uniform cladding
Smooth, flat surface with minimal machining allowance (≤0.25 mm)
High powder utilization rate (>90%)
Excellent deformation control for slender workpieces
Ideal for thin-layer cladding applications
Suitable for cylinders, rolls, shafts, and similar components
