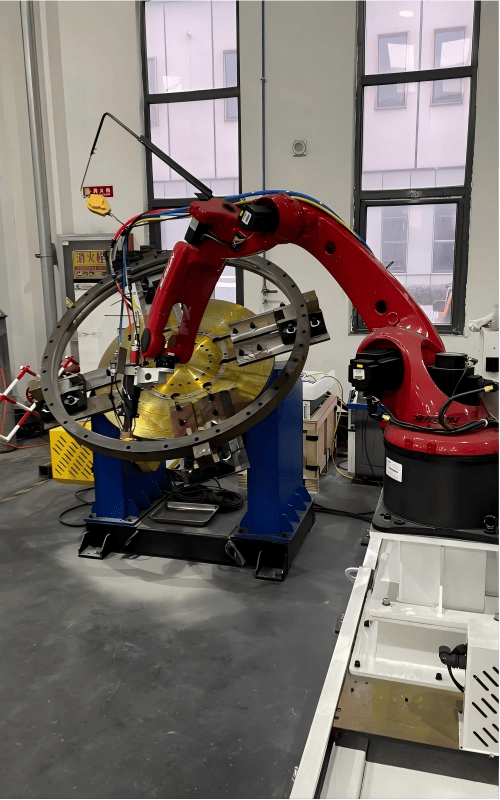

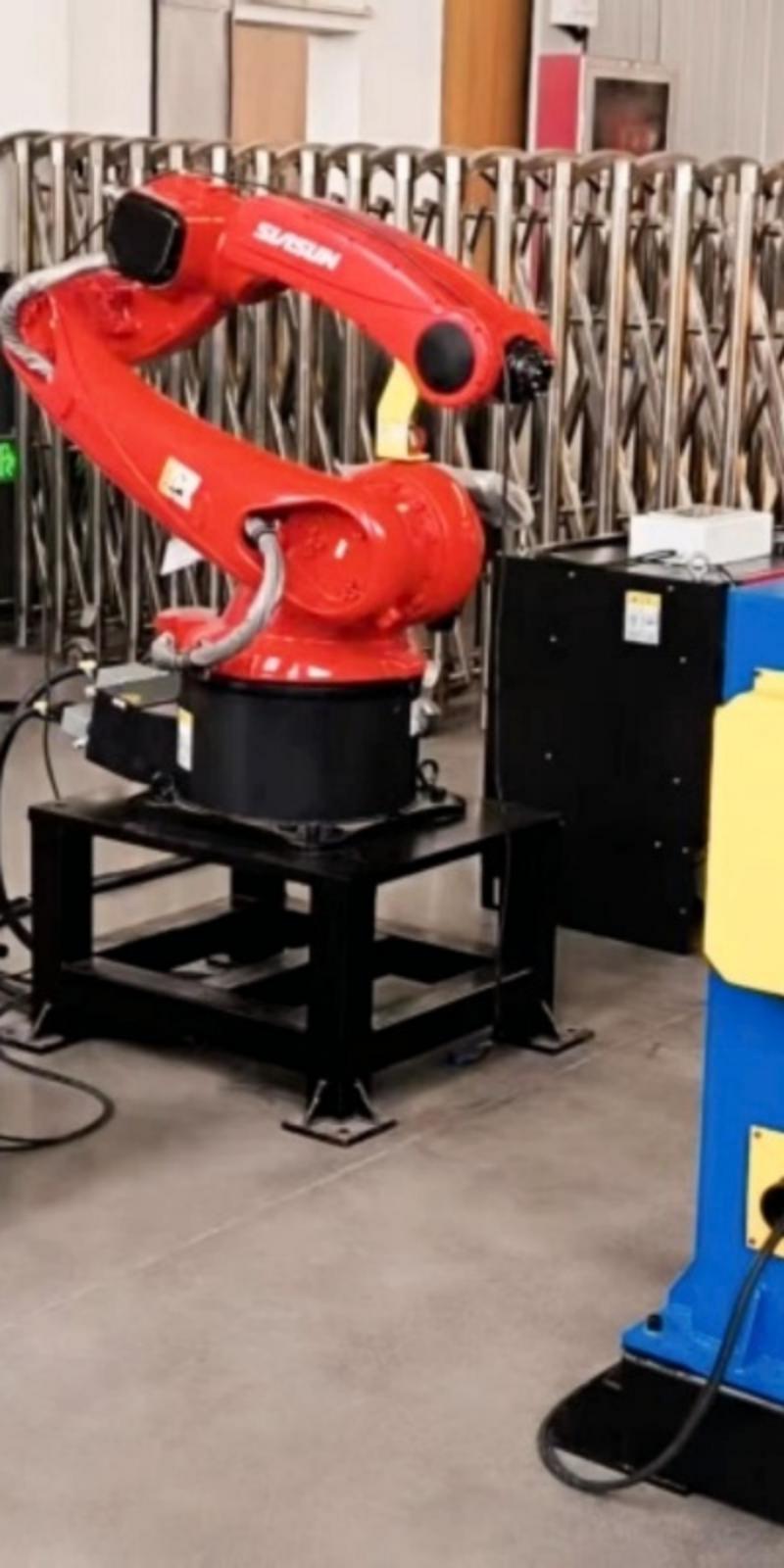

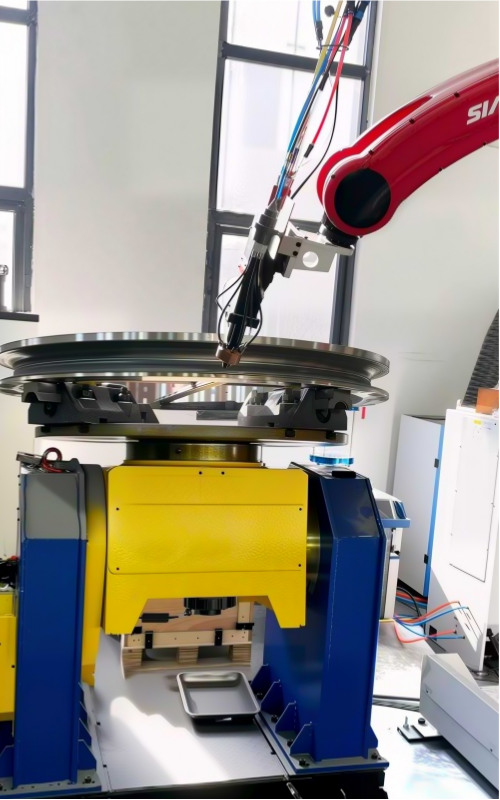

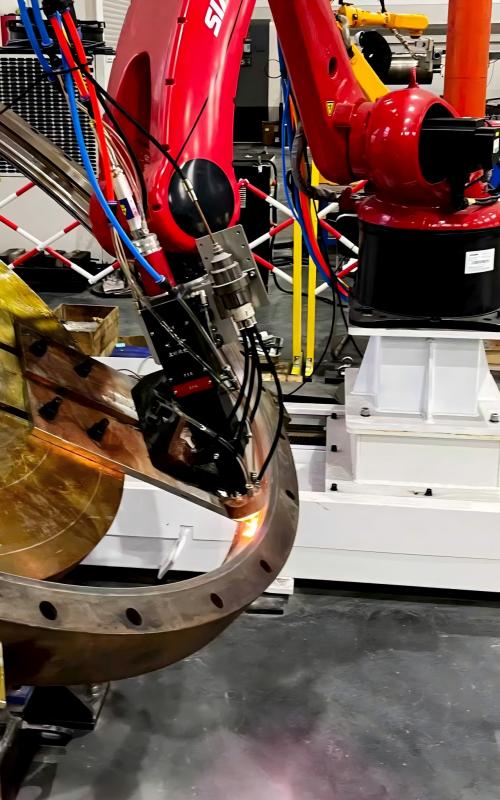

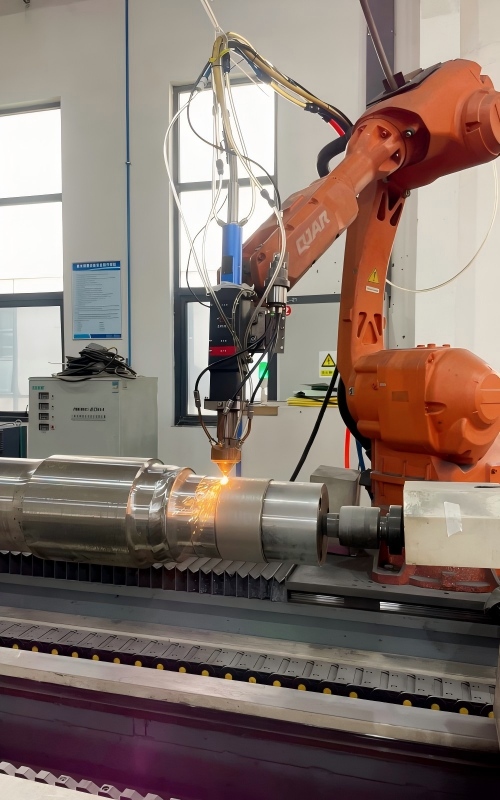

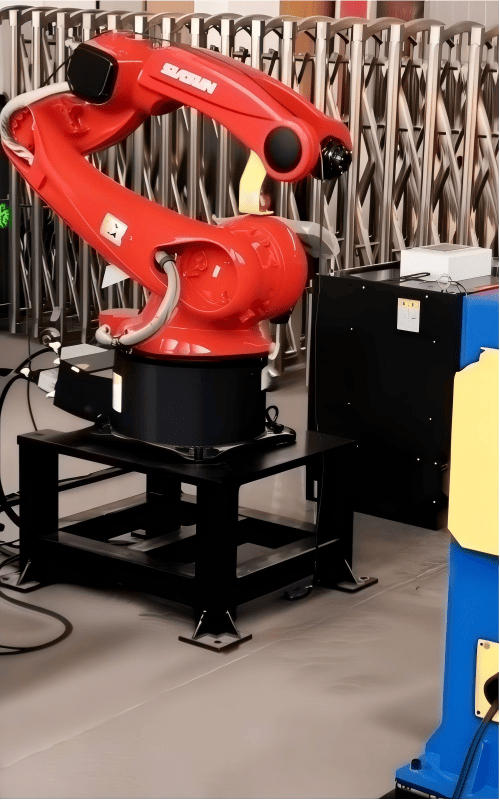

This robotic laser cladding system for large shaft repair is designed for shaft-type and irregular workpieces weighing up to 10 tons and measuring up to 20 meters in length. It supports a laser power range of 3 kW–30 kW and is compatible with circular, square, and rectangular laser spots. The rectangular spot can achieve a maximum width of 60 mm, enabling a single-layer cladding thickness of 0.2–2 mm. For greater coating thickness, multi-layer cladding can be applied while maintaining good metallurgical stability and minimizing the risk of cracking.
As advanced external surface laser cladding equipment for large industrial components, the system features zoomable laser optics, open-frame or fully enclosed designs for fast loading and unloading, and optional integration with machine tools, robotic arms, and positioners. It is equipped with an intelligent control system and supports optional CCD molten pool monitoring, closed-loop temperature control, adaptive height following, oscillation, online preheating, and cold/hot wire feeding modules, making it ideal for high-quality external surface cladding, repair, and remanufacturing of large industrial components.
Structure | Casting/ Welding | Laser | 3–30 kW |
Load | ≤10 t | Workpiece Diameter | ≤2000 mm |
Laser Power | 3–30 kW | Workpiece Length | ≤20000 mm |
Rotational speed | 0–100 r/min | Cladding Thickness： | 0.2–2 mm (single layer) |
Function | Cladding/Hardening |
Compatible with cladding head |
|
|
| |
cladding head model | LZ-OF-20000-PW | LZ-OF-12000-PW | LZ-OF-6000-PW | LZ-OF-12000-PR |
Consumables type | powder | powder | powder | powder |
Spot type | rectangular light spot | rectangular light spot | rectangular light spot | Circular light spot |
Light spot shape |
|
|
|
|
Spot size (mm) | 3×65 | 3×26 | 3×20 | Φ6.5 |
Maximum Supported Laser Power(W) | 20000 | 12000 | 6000 | 12000 |
Operating wavelength (nm) | 1080 | 1080 | 1080 | 1080 |
External dimensions (mm) | 285×165×100 | 285×158×85 | 285×158×85 | 370×75×75 |
weight(kg) | ~5 | ~5 | ~5 | ~4 |
Cooling method | Water cooling | Water cooling | Water cooling | Water cooling |
Water quality requirements | purified water | purified water | purified water | purified water |
Compatible with cladding head |  |
|
| |
cladding head model | LZ-OF-6000-PR | LZ-OF-6000-PR | LZ-OF-12000-PS | |
Consumables type | powder | powder | powder | |
Spot type | Circular light spot | Circular light spot | Square light spot | |
Light spot shape |
|
|
| |
Spot size (mm) | Φ6.5 | Φ4.5 | 6×6 | |
Maximum power that can be withstood (W) | 6000 | 6000 | 12000 | |
Operating wavelength (nm) | 1080 | 1080 | 1080 | |
External dimensions (mm) | 370×75×75 | 442×75×75 | 490×150×75 | |
weight(kg) | ~4 | ~4 | ~7.3 | |
Cooling method | Water cooling | Water cooling | Water cooling | |
Water quality requirements | purified water | purified water | purified water | |
Compatible with cladding head |
|
|
| |
cladding head model | LZ-OF-6000-PS | LZ-OF-6000-AR | LZ-OF-6000-CR | |
Consumables type | powder | Wire/Powder | Wire | |
Spot type | Square light spot | Circular light spot | Circular light spot | |
Light spot shape |
|
|
| |
Spot size (mm) | 4×4 | Φ5 | Φ3 | |
Maximum power that can be withstood (W) | 6000 | 6000 | 6000 | |
Operating wavelength (nm) | 1080 | 1080 | 1080 | |
External dimensions (mm) | 490×150×75 | 425×270×270 | 420×75×75 | |
weight(kg) | ~7.3 | ~4 | ~15 | |
Cooling method | Water cooling | Water cooling | Water cooling | |
Water quality requirements | purified water | purified water | purified water | |

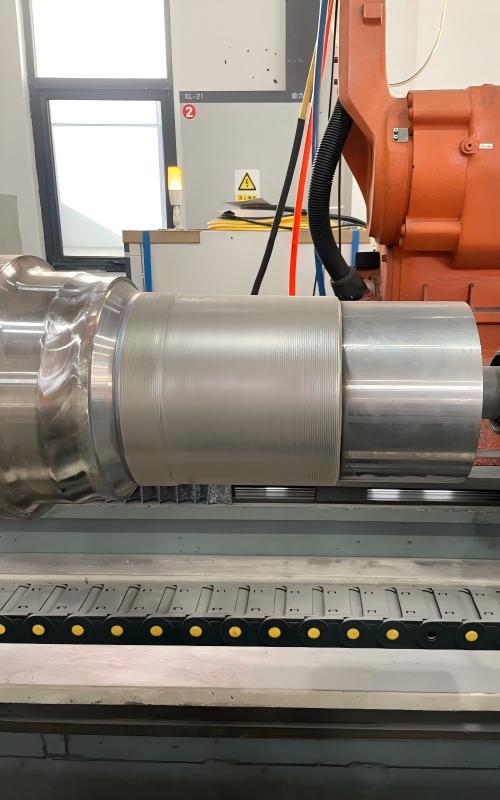

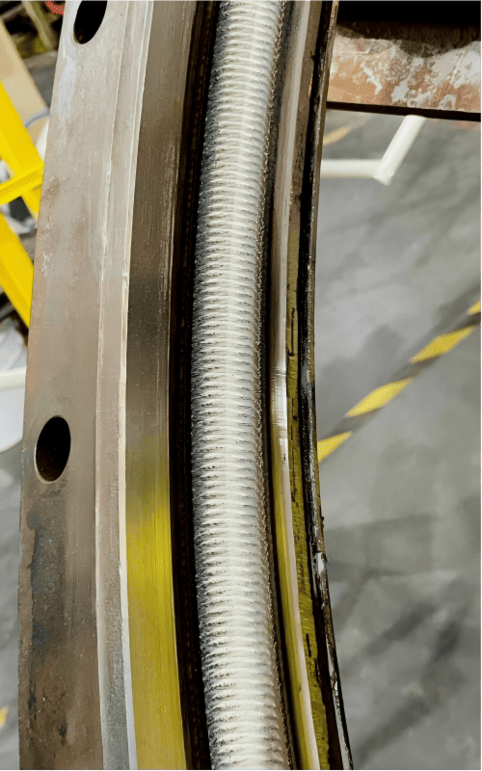

This robotic laser cladding system is suitable for surface repair, strengthening, and remanufacturing of large shaft-type and irregular components.
Typical applications include large shafts, rollers, hydraulic rods, valve components, rotors, sleeves, mining machinery parts, and petrochemical equipment components.
It is especially suitable for laser cladding of large industrial components requiring improved wear resistance, corrosion resistance, and extended service life.
