Independent Optical Design & Multi-Mode Zoomable Spot Technology
Leveraging our founding team's deep expertise in optical engineering, we have achieved fully in-house design, simulation, and manufacturing of laser

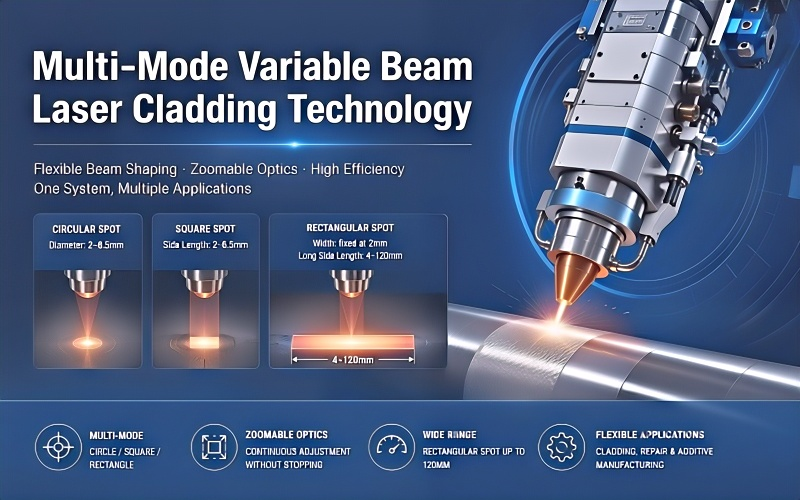

cladding heads. The system supports three spot configurations: circular, square, and rectangular. Circular Spot (Diameter:∅2~6.5mm)
Square Spot (Side Length: 2~6.5mm)
Rectangular Spot
Wideth：fixed at 2mm
Long Side Length：4-120mm
Among these, the rectangular spot reaches a maximum width of 120mm, placing it at the forefront of the industry.

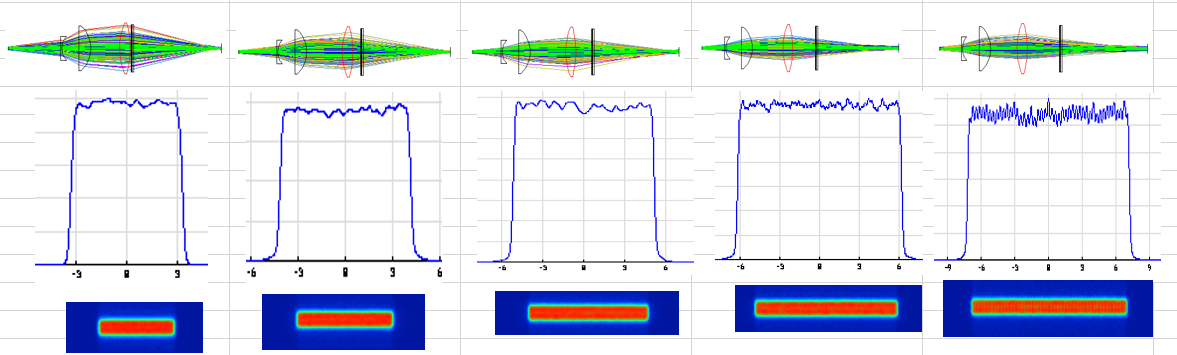

In terms of optical configuration, in addition to fixed-focus systems, we offer a zoomable optics module as an optional solution. Taking the rectangular
spot as an example, the zoomable system allows continuous adjustment of the spot length direction (e.g., from 15mm to 35mm) while maintaining a fixed
spot width — all without stopping the machine to change optical components. This "multi-mode + zoomable" design enables the equipment to flexibly
address a wide range of applications, from high-efficiency large-area cladding to precision repair, truly achieving "one machine, multiple uses."
