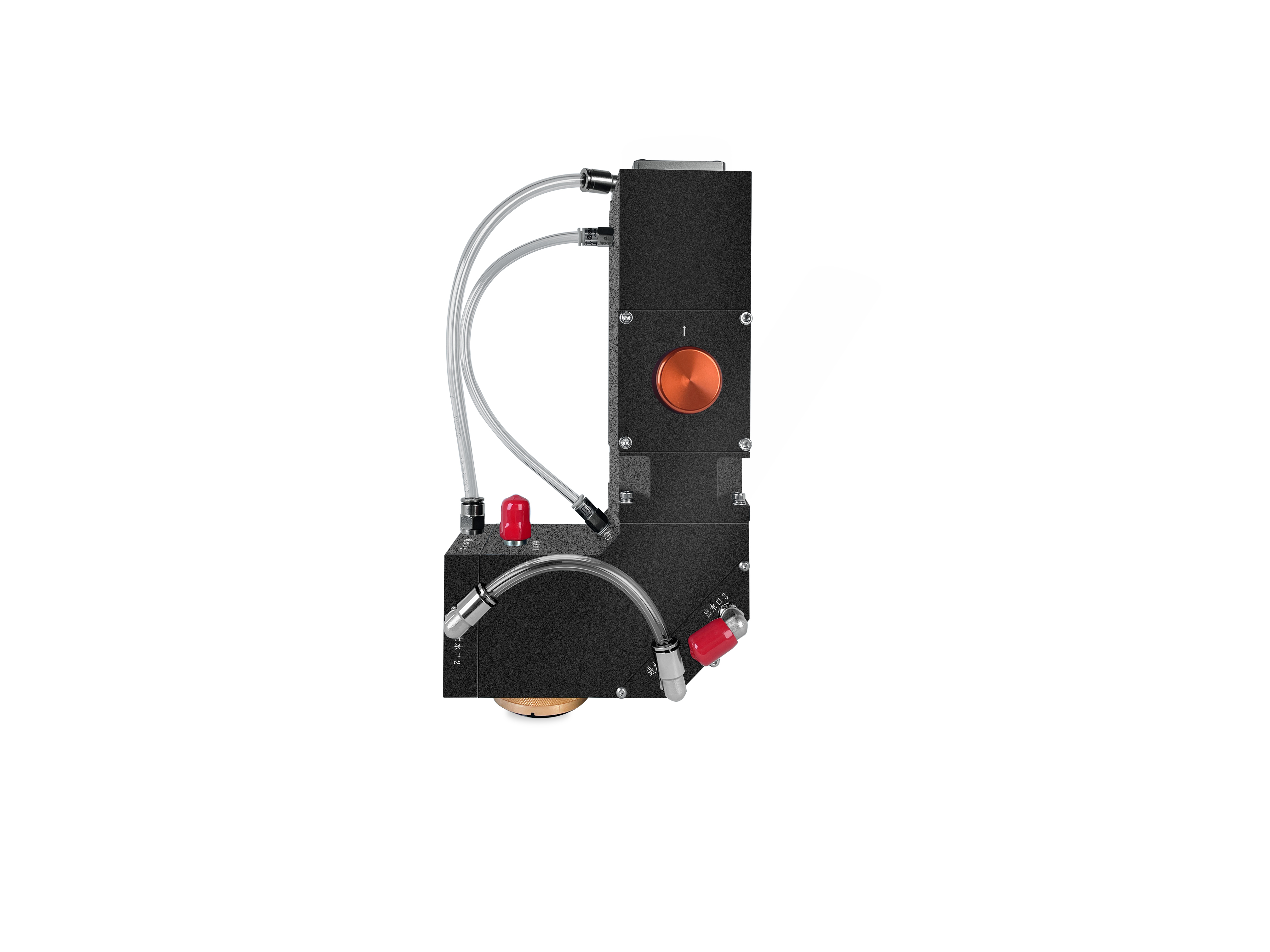

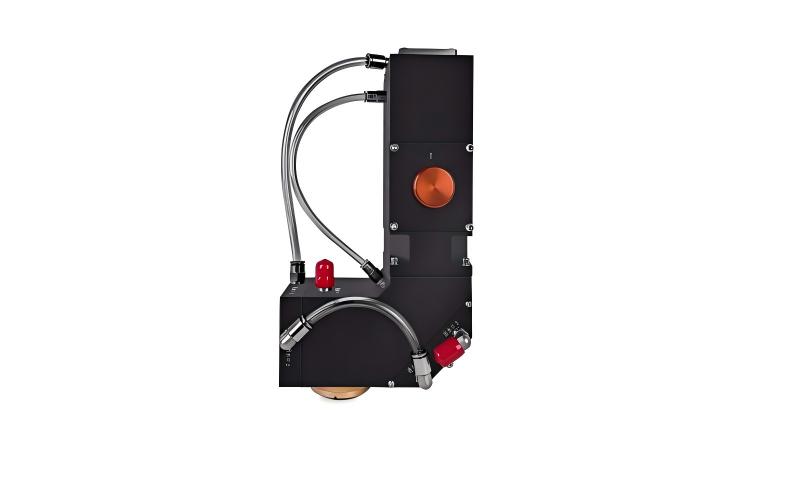

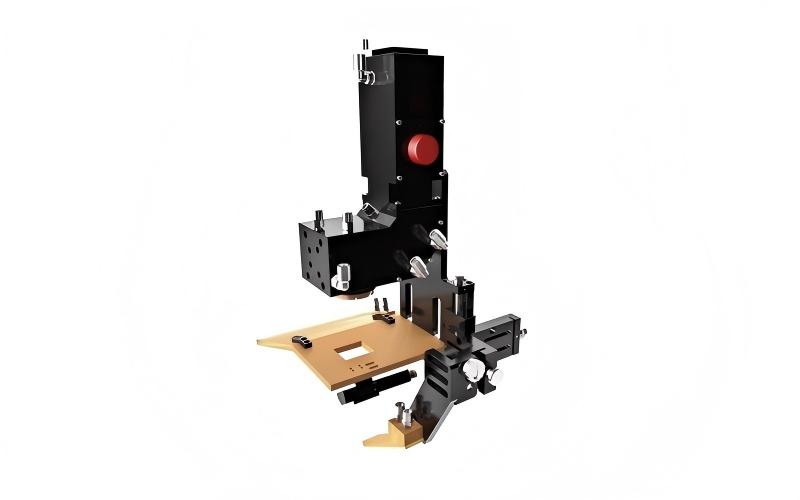

The External surface coaxial powder feeding cladding head is a high-efficiency external surface laser cladding head developed for wide-area coating, industrial component repair, and remanufacturing. Its reflective wide-beam optical design works with a precision powder-delivery system to achieve powder utilization of up to 98%, helping reduce alloy consumption and powder waste in powder-fed directed energy deposition (DED) and laser metal deposition (LMD) processes.
The head supports single-layer cladding thicknesses exceeding 4 mm and stable multi-layer deposition, producing a strong metallurgical bond between the deposited alloy and the substrate. The wide processing beam increases coverage per pass and helps reduce the number of scan tracks and overlap zones, supporting efficient and consistent deposition across large external surfaces.
Designed for wear-resistant surface enhancement, dimensional restoration, and thick protective coating buildup, it is well suited to demanding industrial repair applications. For OEMs, repair centers, and system integrators seeking a wide-beam laser cladding head for external surface repair and remanufacturing, this solution combines high powder efficiency, stable multi-layer capability, and material-efficient thick-layer deposition.
|
|
| |||
| Beam Quality | Process Monitoring | Material Compatibility | |||
Optimized optical design provides stable beam delivery and uniform energy distribution. The beam profile and spot size are matched to the head design and target application. | Optional monitoring functions can include lens temperature monitoring, molten pool observation, process temperature sensing, and real-time process feedback to improve operating stability and process consistency. | Compatible with a wide range of metallic materials, including iron-based, nickel-based, cobalt-based, copper-based, and titanium alloys, depending on the head setup, laser parameters, and feeding method. | |||
|
|
| |||
| Modular Design | Thermal Management & Protection | Industrial Integration | |||

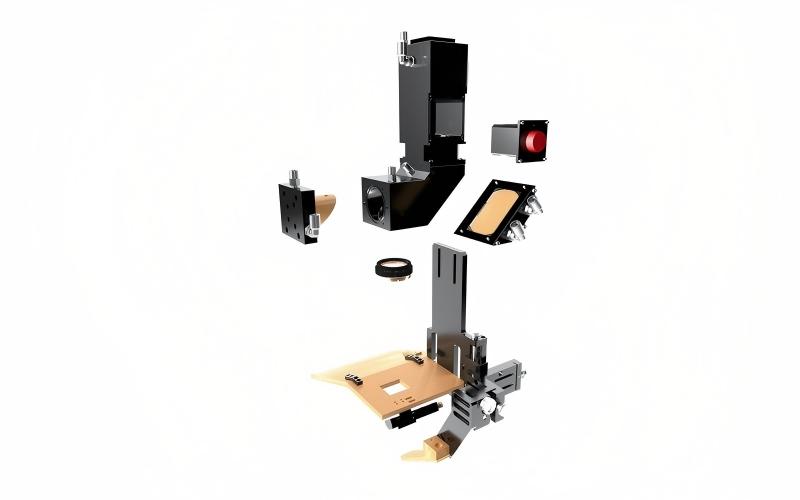

The optical system, cooling structure, monitoring components, and material delivery modules are designed for convenient assembly, maintenance, and replacement. Modular construction also makes customized configurations easier for different industrial applications. | Efficient water cooling helps maintain stable operating temperatures during continuous processing. Protective design features can include dust resistance, spatter protection, sealing structures, and optional thermal monitoring for reliable operation. | Designed for CNC machines, robots, positioners, and automated laser systems. Optical interfaces, working distance, beam setup, and material feeding can be tailored for the application. |

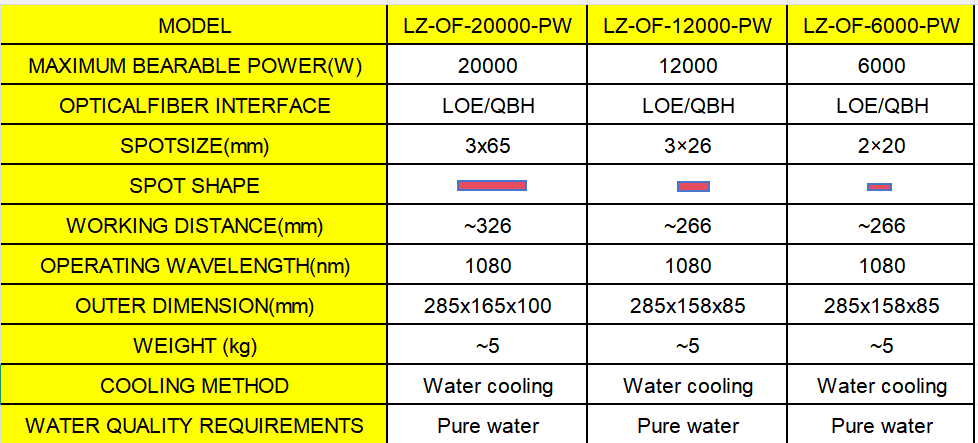

Model | Performance Parameters | Performance Parameters |
Power Options | 6 kW/12 kW | 20 kW |
Fiber Interface | LOE/QBH LOE | LOE |
Spot Size | 2×20 3×26 | 3×65 |
Outer Dimension(mm) | 285×158×85 | 285×165×100 |
Working Distance(mm) | ~266 | ~326 |
Operating Wavelength(nm) | 1080 | 1080 |
Cooling Type | Water cooling | Water cooling |
Water Quality Requirements | Pure water | Pure water |
Hydraulic cylinders and piston rods
Drive shafts and transmission shafts
Steel mill rolls and guide rollers
Mining support columns
Oil & gas transmission pipes
Large cylindrical repair components
Q1: Can the external surface coaxial powder feeding cladding head really achieve a powder utilization rate of up to 98%? What powder
materials is it suitable for?
A1: Yes. This cladding head adopts gravity powder feeding and advanced reflective optical design, achieving a powder utilization rate of
up to 98%，significantly reducing material waste and operating costs. It is suitable for various metal powders, including iron-based,
nickel- based, cobalt-based, copper alloy, and titanium alloy. It is widely used for surface strengthening and repair of components
such as hydraulic props, rollers, and drive shafts.
Q2: Can this equipment be used for multi-layer cladding? What types of workpieces' external surfaces is it suitable for repairing?
A2: Yes. This equipment supports stable multi-layer cladding, with a single-layer cladding thickness exceeding 4mm and high metallurgical
bonding strength. It is highly suitable for external surfaces of cylindrical, tubular, and flat workpieces, such as hydraulic support
cylinders for coal mining, metallurgical rollers, crankshafts, and oil pipelines. It is ideal for high-wear resistance, corrosion resistance,
and industrial repair applications.
