Industrial Laser Cladding Heads & Selection Guide
LZ Optical designs and supplies industrial laser cladding heads and processing heads for powder-fed DED/LMD, wire-fed laser deposition, internal bore cladding, external cylindrical surfaces, wide-beam processing, and laser hardening. Our product range includes compact heads for small internal bores, coaxial and annular heads for large cylindrical components, square and flat-top beam solutions, wire-fed processing heads, and customized optical configurations for CNC and robotic systems.
Selecting the right laser cladding head depends on laser power, workpiece geometry, bore diameter, processing depth, working distance, beam profile, material feeding method, and automation requirements. This guide explains the main head types available from LZ Optical and helps users identify a suitable configuration for their application.

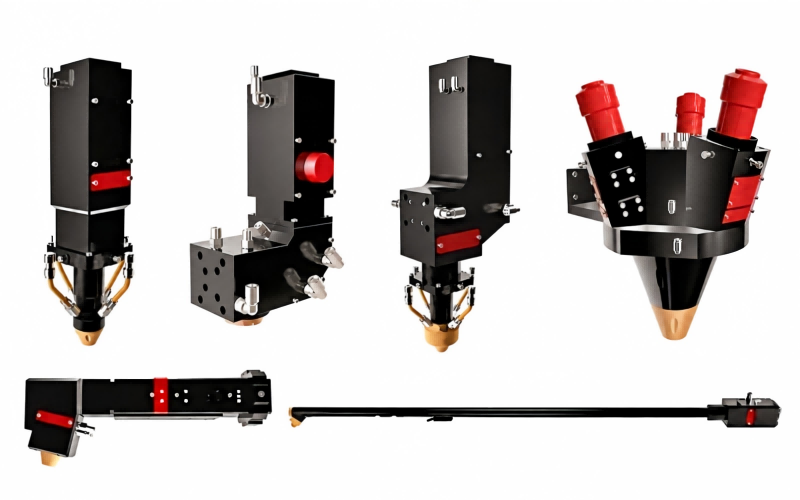

Laser Cladding Head Types
Internal Bore Laser Cladding Heads
Designed for cylindrical internal surfaces such as hydraulic cylinders, pipes, sleeves, valve bodies, and pressure vessels. Selection mainly depends on bore diameter, processing depth, working distance, laser power, and material feeding method.
External Surface Laser Cladding Heads
Designed for shafts, rollers, hydraulic components, cylindrical parts, flat surfaces, and large industrial components. Different circular, square, rectangular, and wide-beam configurations are available according to processing width and deposition requirements.
Powder-Fed Laser Cladding Heads
Powder-fed heads are widely used for wear protection, corrosion resistance, dimensional restoration, repair, and remanufacturing. Iron-, nickel-, cobalt-, copper-, and other alloy powders can be selected according to the substrate and service conditions.
Wire-Fed Laser Deposition Heads
Wire-fed processing heads deliver metallic wire directly into the molten pool and are suitable for selected repair, deposition, and additive manufacturing applications where high material utilization and continuous feeding are required.
Wide-Beam & Flat-Top Processing Heads
Wide-beam, square, rectangular, and flat-top optical configurations provide controlled energy distribution for large-area cladding, reduced track overlap, and application-specific surface processing.
Laser Hardening Heads
Laser hardening heads are designed for selective surface heat treatment without filler material. Different beam widths and optical configurations can be used for internal surfaces, external surfaces, gears, shafts, guideways, molds, and complex geometries.
Laser Cladding Head Selection Guide
Application | Recommended Head Type | Feeding | Main Selection Factors |
Small internal bore | Compact internal-bore head | Powder | Bore diameter, depth, working distance |
Large internal bore | Coaxial / annular / wide-beam head | Powder / Wire | Diameter, deposition width, accessibility |
Shaft / roller | External cylindrical head | Powder / Wire | Beam size, deposition rate, rotation |
Large surface | Wide-beam / flat-top head | Powder | Processing width, heat input |
Complex geometry | Coaxial / robotic head | Powder / Wire | Accessibility, orientation, robot motion |
High material utilization | Wire-fed head | Wire | Wire diameter, feeding direction |
Selective hardening | Laser hardening head | None | Beam width, hardened area, geometry |
Explore LZ Optical Laser Cladding Heads
Internal Laser Cladding Head
https://www.lzoptical.com/laser-cladding-head/wide-beam-ded-head-for-internal-cylindrical-cladding/
https://www.lzoptical.com/laser-cladding-head/2-inch-coaxial-laser-metal-deposition-head/
External Laser Cladding Head
https://www.lzoptical.com/laser-cladding-head/external-surface-coaxial-powder-feeding-cladding-head/
https://www.lzoptical.com/laser-cladding-head/coaxial-lmd-head-for-external-cylindrical-cladding/
https://www.lzoptical.com/laser-cladding-head/crankshaft-laser-cladding-head/
Wire-Fed Laser Cladding Head
https://www.lzoptical.com/laser-cladding-head/central-wire-feeding-laser-cladding-head/
https://www.lzoptical.com/laser-cladding-head/4-inch-coaxial-wire-fed-laser-processing-head/
Laser Hardening Head
https://www.lzoptical.com/laser-cladding-head/variable-beam-laser-hardening-head/
https://www.lzoptical.com/laser-cladding-head/laser-hardening-head-for-internal-surfaces/
https://www.lzoptical.com/laser-cladding-head/laser-hardening-head-for-surface-treatment/
How to Choose the Right Laser Cladding Head
When selecting a laser cladding head, start with the workpiece rather than the head model. The most important factors are processing geometry, internal or external access, bore diameter, processing depth, laser power, optical interface, beam profile, coating width, powder or wire feeding, and automation platform.
For internal bore applications, head diameter and working distance are especially important. For example, compact LZ Optical processing heads are available for bore diameters starting from approximately 50 mm, while larger coaxial, annular, and wide-beam configurations are designed for medium and large internal diameters.
For large external surfaces, beam width, deposition rate, heat input, and motion-system capability become more important. Wide rectangular or flat-top beams can be used where higher surface coverage or reduced track overlap is required.
FAQ
What types of laser cladding heads does LZ Optical supply?
LZ Optical supplies powder-fed, wire-fed, coaxial, annular, internal bore, external cylindrical, square-beam, flat-top, wide-beam, and laser hardening processing heads for industrial applications.
How do I choose a laser cladding head for an internal bore?
Selection depends primarily on bore diameter, processing depth, working distance, laser power, optical accessibility, beam profile, and powder or wire feeding requirements.
Can LZ Optical customize a laser cladding head?
Yes. Processing heads can be customized according to laser power, optical interface, working distance, beam profile, workpiece geometry, bore diameter, powder or wire delivery, and CNC or robotic integration requirements.
Can laser cladding heads be integrated with robots and CNC machines?
Yes. LZ Optical processing heads can be configured for CNC machines, robotic systems, positioners, and customized automated laser processing platforms.
Need Help Selecting a Laser Cladding Head?
Send us your workpiece drawing, material, dimensions, bore diameter or external processing area, available laser power, target coating material, and automation platform. Our engineering team can recommend a suitable processing head and preliminary configuration.
