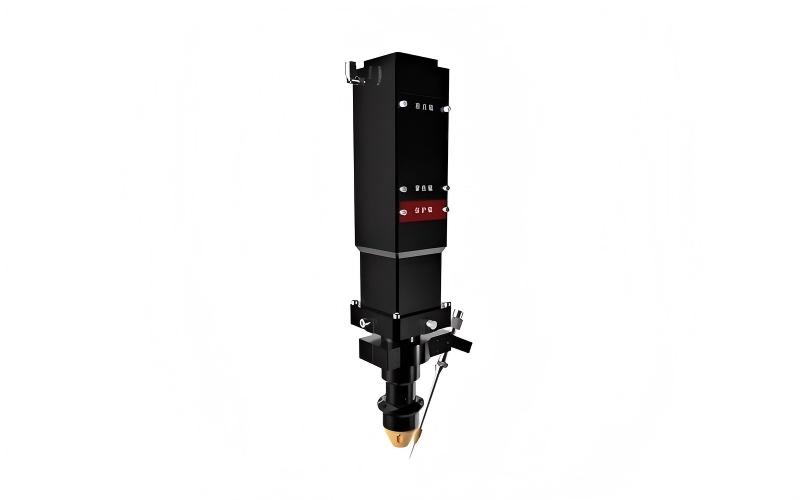

The Wire Laser Deposition Head for External Cylindrical Cladding combines a transmissive optical system with precision off-axis wire feeding for high-efficiency external cylindrical laser cladding. Designed for wire-fed directed energy deposition (DED), it offers up to 100% wire utilization, helping minimize feedstock waste while maintaining stable and repeatable deposition.
Engineered for robotic integration, the head supports automated cladding of complex geometries and vertical surfaces. It produces
smooth, low-dilution cladding layers with minimal distortion and consistent surface quality, helping reduce subsequent machining and
improve dimensional control.
Compatible with copper-, aluminum-, and titanium-alloy wires, the head supports flexible non-ferrous alloy deposition for different service and performance requirements. It is suitable for surface enhancement, localized repair, dimensional restoration, and remanufacturing of external cylindrical components.
For OEMs, repair centers, and system integrators seeking a wire-fed laser cladding head for external cylindrical repair and remanufacturing, this solution combines high material efficiency, broad wire compatibility, low-distortion processing, and reliable robotic integration.
|
|
| |||
| Beam Quality | Process Monitoring | Material Compatibility | |||
Optimized optical design provides stable beam delivery and uniform energy distribution. The beam profile and spot size are matched to the head design and target application. | Optional monitoring functions can include lens temperature monitoring, molten pool observation, process temperature sensing, and real-time process feedback to improve operating stability and process consistency. | Compatible with a wide range of metallic materials, including iron-based, nickel-based, cobalt-based, copper-based, and titanium alloys, depending on the head setup, laser parameters, and feeding method. | |||
|
|
| |||
| Modular Design | Thermal Management & Protection | Industrial Integration | |||

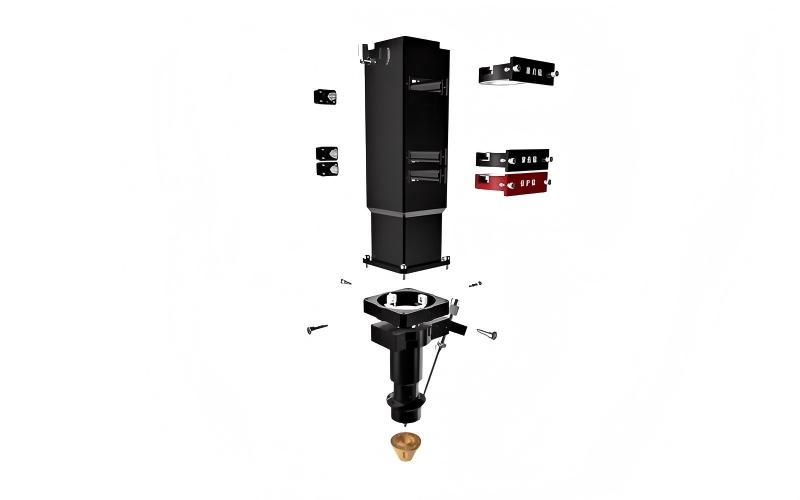

The optical system, cooling structure, monitoring components, and material delivery modules are designed for convenient assembly, maintenance, and replacement. Modular construction also makes customized configurations easier for different industrial applications. | Efficient water cooling helps maintain stable operating temperatures during continuous processing. Protective design features can include dust resistance, spatter protection, sealing structures, and optional thermal monitoring for reliable operation. | Compatible with CNC machines, robots, positioners, and automated laser systems. Optical interfaces, working distance, beam setup, and wire feeding can be tailored to the application. |
Model | Performance Parameters |
Power Options | 6 kW |
Fiber Interface | LOE |
Spot Size | ~ Φ5 |
Outer Dimension(mm) | 420×75×75 |
Working Distance(mm) | ~20 |
Operating Wavelength(nm) | 1080 |
Cooling Type | Water cooling |
Water Quality Requirements | Pure water |
Thick-wall component repair
Heavy shaft rebuilding
Marine propulsion shafts
Offshore equipment
Continuous wire-fed deposition
High-efficiency remanufacturing
Q1: What wire diameters and materials are compatible with this wire-fed laser deposition head?
A1: This wire-fed laser deposition head is designed for stable metal wire delivery during laser cladding and directed energy deposition processes. It can be configured for different wire diameters and alloy systems according to the application requirements, including stainless steels, nickel-based alloys, cobalt-based alloys, and other compatible metal wires. The recommended wire diameter and feeding parameters should be matched with the laser power, deposition rate, workpiece geometry, and target coating thickness.
Q2: What are the main advantages of wire-fed laser deposition compared with powder-fed cladding for external cylindrical components?
A2: Wire-fed laser deposition provides highly efficient material utilization because the wire is delivered directly into the molten pool, significantly reducing material loss compared with conventional powder feeding. It is particularly suitable for external cylindrical components such as shafts, rolls, hydraulic parts, and rotating components. The process also offers stable material delivery, a cleaner working environment, and good compatibility with CNC systems, positioners, and robotic automation for continuous industrial production.
