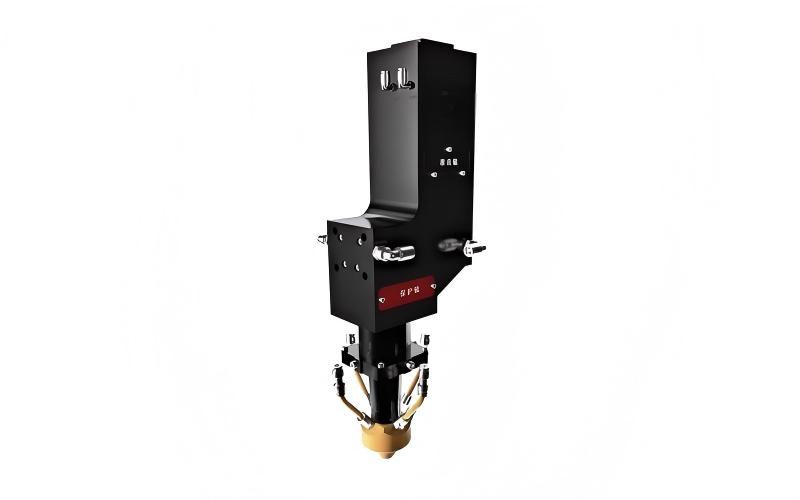

The Square Beam LMD Head for External Cylindrical Cladding combines a reflective optical system with precision off-axis powder feeding for high-efficiency powder-fed laser metal deposition (LMD). Engineered for external cylindrical laser cladding, its flat-top square beam provides highly uniform energy distribution across the processing area, helping reduce local overheating and overlap-related defects such as porosity, cracking, and excessive height variation. This supports stable deposition and smooth cladding layers with excellent surface flatness on cylindrical and complex-shaped components.
With powder utilization of 90% or higher, the head helps reduce alloy waste while supporting a broad range of feedstock materials, including high-hardness alloys and carbide-reinforced composite powders. It is suitable for wear-resistant coating deposition, surface enhancement, localized repair, dimensional restoration, and component remanufacturing.
The same head can also perform precision laser hardening, combining cladding and hardening capabilities in one flexible surface-processing solution. For OEMs, repair centers, and system integrators seeking a square beam laser cladding head for external cylindrical surface repair, it offers uniform flat-top energy distribution, efficient powder delivery, flexible material compatibility, and repeatable processing quality for demanding industrial applications.
|
|
| |||
| Beam Quality | Process Monitoring | Material Compatibility | |||
Optimized optical design provides stable beam delivery and uniform energy distribution. The beam profile and spot size are matched to the head design and target application. | Optional monitoring functions can include lens temperature monitoring, molten pool observation, process temperature sensing, and real-time process feedback to improve operating stability and process consistency. | Compatible with a wide range of metallic materials, including iron-based, nickel-based, cobalt-based, copper-based, and titanium alloys, depending on the head setup, laser parameters, and feeding method. | |||
|
|
| |||
| Modular Design | Thermal Management & Protection | Industrial Integration | |||

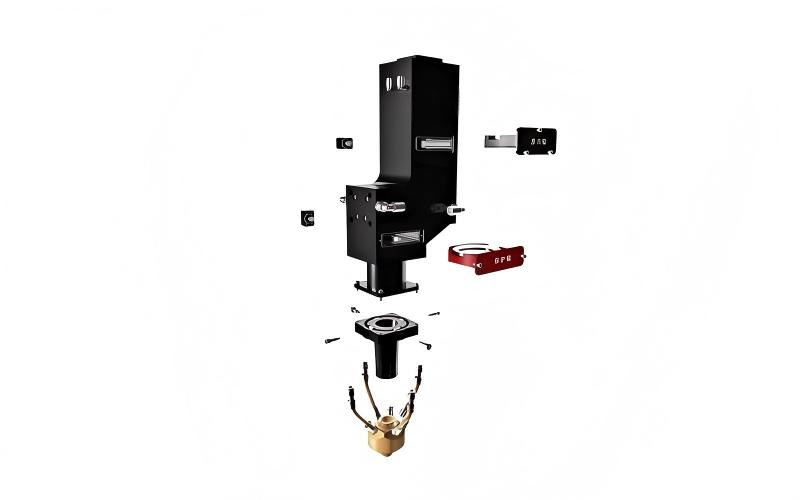

The optical system, cooling structure, monitoring components, and material delivery modules are designed for convenient assembly, maintenance, and replacement. Modular construction also makes customized configurations easier for different industrial applications. | Efficient water cooling helps maintain stable operating temperatures during continuous processing. Protective design features can include dust resistance, spatter protection, sealing structures, and optional thermal monitoring for reliable operation. | Designed for CNC machines, robots, positioners, and automated laser systems. Optical interfaces, working distance, beam setup, and material feeding can be tailored for the application. |
Model | Performance Parameters |
Power Options | 6 kW/12 kW |
Fiber Interface | LOE |
Spot Size | 6×6 |
Outer Dimension(mm) | 490×150×75 |
Working Distance(mm) | ~20 |
Operating Wavelength(nm) | 1080 |
Cooling Type | Water cooling |
Water Quality Requirements | Pure water |
Guide rails
Flat molds
Steel plates
Machine beds
Linear guide surfaces
Large rectangular workpieces
Q1: Why choose a square beam LMD head over a traditional round beam for cylindrical cladding?
A1: The flat-top square beam provides uniform energy distribution across the entire cladding width, significantly reducing overlap defects and
improving surface smoothness compared to round beam systems. This results in higher-quality cladding layers with fewer post-processing
requirements — ideal for hydraulic legs, mill rolls, and drive shafts.
Q2: Can this square beam deposition head be used for applications other than cladding?
A2: Yes. In addition to laser metal deposition (LMD) with powder utilization rates ≥90%, this versatile head can also perform precise laser
hardening on component surfaces. This dual functionality makes it a cost-effective solution for both surface enhancement (wear-resistant
coatings) and surface hardening applications across mining, steel rolling, and power transmission industries
