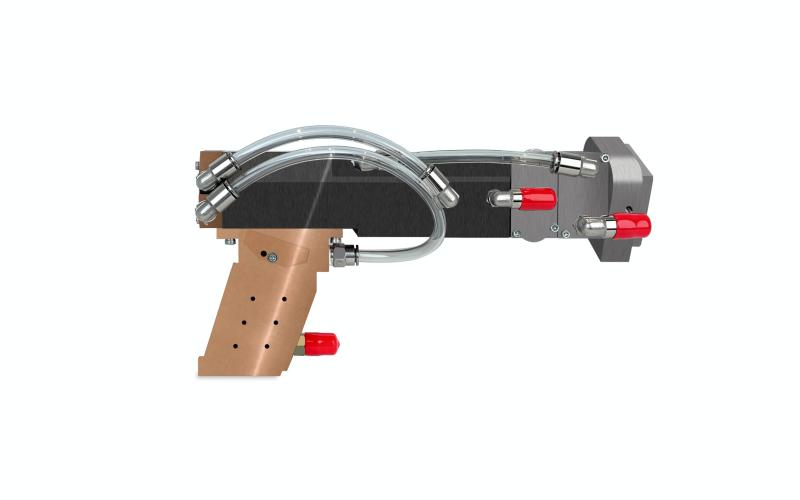

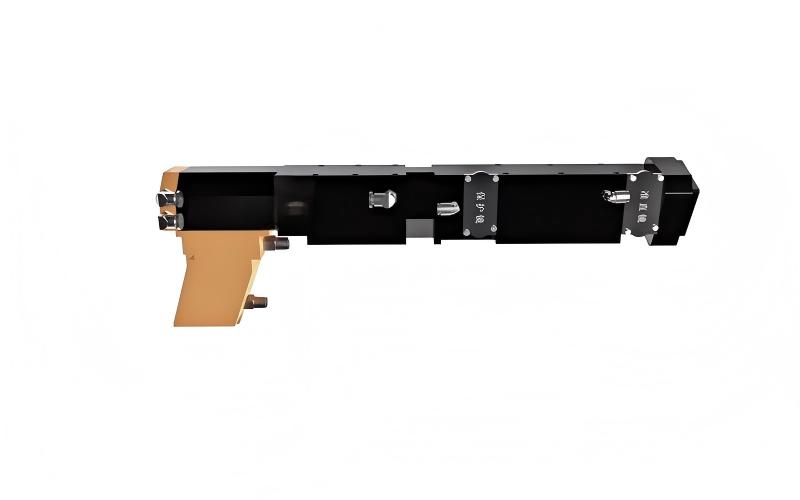

The Wide Beam DED Head for Internal Cylindrical Cladding features a reflective, off-axis powder-feeding design engineered for high-efficiency internal bore laser cladding on cylindrical components with internal diameters of 200 mm and above. Its wide rectangular beam provides uniform energy distribution across the processing area, helping maintain stable and consistent coverage over large internal surfaces.
Powder utilization exceeds 95%, reducing material waste while supporting alloy coatings across a broad hardness range, including wear-resistant, impact-resistant, and high-strength coatings. The combination of a wide processing beam and precise powder delivery makes the head suitable for demanding internal surface applications where coating uniformity, material efficiency, and repeatable processing quality are important.
In addition to powder-fed DED, the head supports internal surface laser hardening, allowing laser cladding and surface strengthening to be incorporated into the same processing solution. It is suitable for wear protection, impact resistance, localized repair, internal surface enhancement, and remanufacturing of large-bore cylinders, sleeves, pipes, and other cylindrical industrial components.
For manufacturers, repair centers, and system integrators seeking a wide-beam laser cladding head for internal bores of 200 mm and above, this solution combines high powder efficiency, uniform rectangular-beam processing, flexible coating-material compatibility, and integrated internal bore cladding and laser hardening.
|
|
| |||
| Beam Quality | Process Monitoring | Material Compatibility | |||
Optimized optical design provides stable beam delivery and uniform energy distribution. The beam profile and spot size are matched to the head design and target application. | Optional monitoring functions can include lens temperature monitoring, molten pool observation, process temperature sensing, and real-time process feedback to improve operating stability and process consistency. | Compatible with a wide range of metallic materials, including iron-based, nickel-based, cobalt-based, copper-based, and titanium alloys, depending on the head setup, laser parameters, and feeding method. | |||
|
|
| |||
| Modular Design | Thermal Management & Protection | Industrial Integration | |||

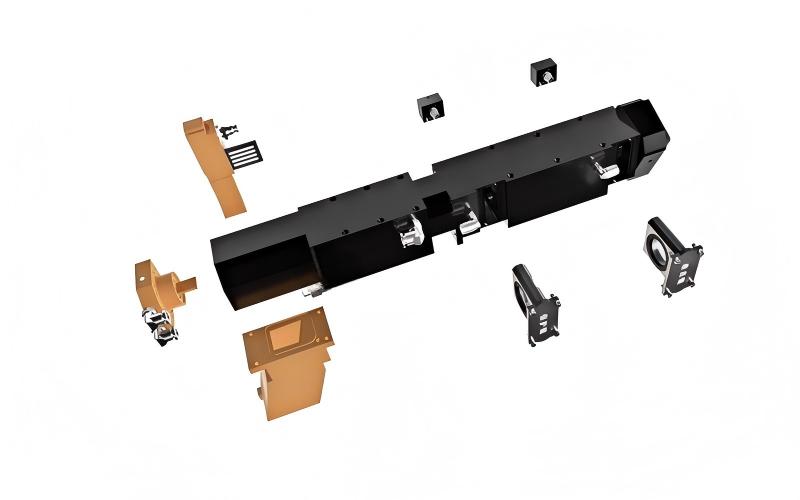

The optical system, cooling structure, monitoring components, and material delivery modules are designed for convenient assembly, maintenance, and replacement. Modular construction also makes customized configurations easier for different industrial applications. | Efficient water cooling helps maintain stable operating temperatures during continuous processing. Protective design features can include dust resistance, spatter protection, sealing structures, and optional thermal monitoring for reliable operation. | Designed for CNC machines, robots, positioners, and automated laser systems. Optical interfaces, working distance, beam setup, and material feeding can be tailored for the application. |
Model | Performance Parameters |
Power Options | 6 kW/12 kW |
Fiber Interface | LOE /QBH LOE |
Spot Size | 2×16 3×26 |
Outer Dimension(mm) | 445×150×65 |
Machinable Inner Hole Diameter(mm) | ≥Φ200 |
Operating Wavelength(nm) | 1080 |
Cooling Type | Water cooling |
Water Quality Requirements | Pure water |
Large-diameter bores
Hydraulic cylinder barrels
Oil & gas pipelines
Metallurgical rollers
Mining equipment
Thick internal coatings
Q1: What is the minimum internal diameter this Wide Beam DED Head can access for internal cylindrical cladding?
A1: While exact minimum diameter depends on the specific head configuration, this wide beam DED head is specifically optimized for internal
cylindrical cladding, designed to access confined bore spaces commonly found in hydraulic cylinders, pipe interiors, and mining bushings.
Its reflective off-axis powder feeding ensures a stable powder stream and uniform cladding layer even on deep or narrow internal surfaces.
Please contact our team with your specific bore size for compatibility details.
Q2: What is the powder utilization rate of this internal cladding head, and what materials can it apply to internal bore surfaces?
A2: This wide beam DED head achieves powder utilization rates ≥90% thanks to its reflective off-axis powder feeding design, minimizing waste
— especially critical when working inside expensive components. It supports iron-based, nickel-based, cobalt-based, copper, titanium alloys,
and high-hardness carbide coatings, making it ideal for internal wear protection of hydraulic cylinder barrels, pipe inner walls, and other
cylindrical bores subject to abrasion or corrosion.
